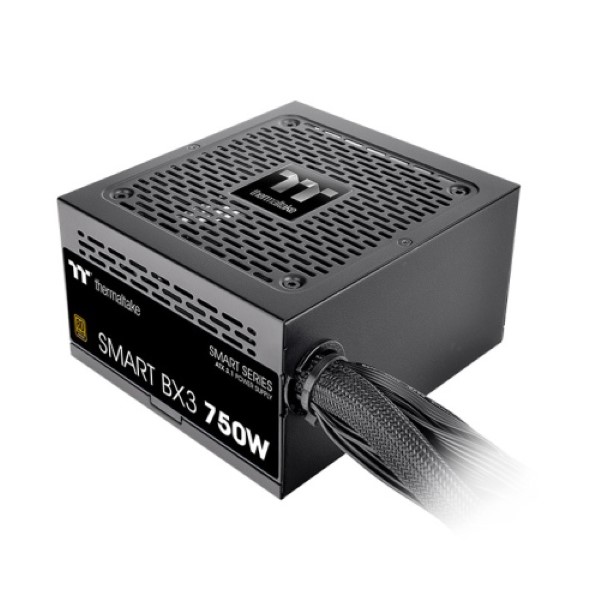

Thermaltake Smart BX3 750W 80 Plus Bronze ATX 3.1 Power Supply

Name: Buy Thermaltake Smart BX3 750W 80 Plus Bronze ATX 3.1 Power Supply - Computech Store
Brand: Thermaltake
SKU: PS-SPD-0750NNFABD-3
Price: 5815.00 INR
Availability: InStock

Brands

3 sold in last 20 hours

Hurry! Over 1 people have this in their carts

Brand:

Thermaltake

Comply with Intel ATX 3.1 standard
80 PLUS Bronze certified efficiency
DC to DC design with high quality 105°C/221°F main capacitor
Complete hardware protection: OCP, OVP, UVP, OPP, SCP, OTP
5 year warranty

Estimated Delivery: Fri, Jul 31 – Tue, Aug 04

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹9,499.00.Current price is: ₹5,815.00.

Description Specifications Additional information Reviews (0) Q & A

Thermaltake Smart BX3 750W 80Plus Bronze ATX 3.1 Standard Power Supply Non-Modular PS-SPD-0750NNFABD-3 5 Year Warranty

Unmatched Reliability ATX 3.1 Power Supply

The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It’s perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.

ATX 3.1 Ready

Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

Be Smart, Stay Quiet

Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.

High Quality 105°C/221°F Main Capacitor

High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.

High Amperage Single +12V Rail & DC to DC Design

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT	Input Voltage: 100 – 240V~ Input Current: 15A-6A Frequency: 50Hz/60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
Max Output Current	18A	18A	62.5A	0.3A	3A
Max Output Power	110W		750W	3.6W	15W
Total Power	750W

Built-in Industrial Grade Protection

To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

Non-Modular Flat Cable Design

Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	600mm
ATX 12V (4+4Pin)	X 2	X 1	650mm+150mm
PCIe (6+2Pin)	X 2	X 1	500mm+150mm
SATA (5Pin)	X 4	X 1	500mm+150mm +150mm+150mm
Peripheral	X 4	X 1	500mm+150mm +150mm+150mm

80 PLUS Bronze-Certified and Intel C6/C7 States Ready

Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

More Information
P/N	PS-SPD-0750NNFABx-3
watts	750W
Model	SPD-0750AH2NLB-3
Max. Output Capacity	750W
Color	Black
Dimension ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-150 msec
Hold Up Time	> 17msec at 80% load
Input Current	15A-6A
Input Frequency Range	50Hz/60Hz
Input Voltage	100-240V～
OPERATING TEMPERATURE	5°C to + 45°C
Operating Humidity	20% to 85%,non-condensing
Storage Temperature	-40°C to + 55°C
Storage Humidity	10% to 95%, non-condensing
COOLING SYSTEM	12cm FDB Fan
Efficiency	Meet 80 PLUS® Bronze at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
PCI-E 6+2pin	2
Smart Zero Fan	Fan will not spin until the load exceeds 20% No physical fan switch
PROTECTION	OCP/OVP/UVP/OPP/OTP/SCP
