Super Flower Zillion DB 550W Bronze Smps
10 sold in last 13 hours
Hurry! Over 4 people have this in their carts
Brand:
SuperFlower
Estimated Delivery: Wed, Jul 29 – Sun, Aug 02
... people are viewing this right now
Original price was: ₹9,900.00.₹3,872.00Current price is: ₹3,872.00.
Super Flower Zillion DB 550W Bronze Smps
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
- 80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
- Comply With ATX 12V v2.3, EPS 12V v2.92 Specification.
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
- OVP / SCP / OPP / NLP
- All Flat Cables.
- 105°C Taiwanese Main Capacitor.
| Model Name | Zillion DB Bronze 550W |
| Model Number | SF-550Z12DB |
| Wattage | 550W |
| Efficiency (230V EU) | 20%: 85%, 50%: 88%, 100%: 85% (Internal Bronze) |
| Intel Design Compliance | ATX 12V v2.3, EPS 12V v2.92 |
| AC Input / Frequency | 200–240V~ 5A 50–60Hz |
| DC Output Rails | +3.3V, +5V, +12V, -12V, 5VSB |
| Max Output Current | +3.3V: 16A, +5V: 16A, +12V: 42A, -12V: 0.3A, 5VSB: 3A |
| Max Combined Wattage | +3.3V & +5V: 100W, +12V: 504W, -12V: 3.6W, 5VSB: 15W, Total: 550W |
| Cooling Fan Size | 120 mm Sleeve Fan |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Weight | ~1.5 Kg |
| Protection Features | OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power), NLP (No Load Protection) |
| Certifications / Safety | TÜV, CB, CE, RoHS |
| Cable Spec | 20+4 Pin |
| Fixed Cables | 1 × 500 mm |
| CPU Power Cable | 1 × 8Pin & 4+4Pin (600 mm + 150 mm) |
| PCIe Power Cable (SLI) | 1 × (2 × PCI 6+2Pin) – 500 mm + 150 mm |
| Storage Cables | 2 × SATA + 1 × PATA – 450 mm + 150 mm + 150 mm |
| Note | Features, price, and specifications are subject to change without notice. Images are for representation only. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| PSU Certification | |
| Wattage | |
| Modular | |
| Warranty |
Add a review
Currently, we are not accepting new reviews
Q & A
Ask a question
Super Flower Zillion DB 550W Bronze Smps
Your question
* Question is required
Name
* Name is required
Email
* Email is required
There are no questions yet
Related Products
Super Flower Leadex VII XP PRO 850W 80+ Platinum, Cybenetics Platinum, Full Modular, ATX 3.1 & PCIe 5.0, W/12VHPWR (2x8pin-16pin Native Cables), FDB Fan, SF-850F14XP, Black
Original price was: ₹32,499.00.₹11,199.00Current price is: ₹11,199.00.
- 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
- Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
- New patented technology of Buckle (20+4) Pin connector
- Innovative Design for gaming System & PSU protection
Super Flower Leadex Platinum SE 1200W 80+ Platinum, 10 Years Warranty, ECO Fanless & Silent Mode, Full Flat Ribbon Modular Power Supply, Dual Ball Bearing Fan, SF-1200F14MP V2
Original price was: ₹45,499.00.₹16,794.00Current price is: ₹16,794.00.
- 100% Full Modular Cabling Design For Easy Cable Management.
- 80 PLUS® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
- Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
Super Flower Leadex VII XG 1000W ATX 3.1 Power Supply (White)
Original price was: ₹25,900.00.₹17,999.00Current price is: ₹17,999.00.
Super Flower Leadex III Gold UP ATX 3.1 850 Watts Power Supply
Original price was: ₹16,000.00.₹9,245.00Current price is: ₹9,245.00.

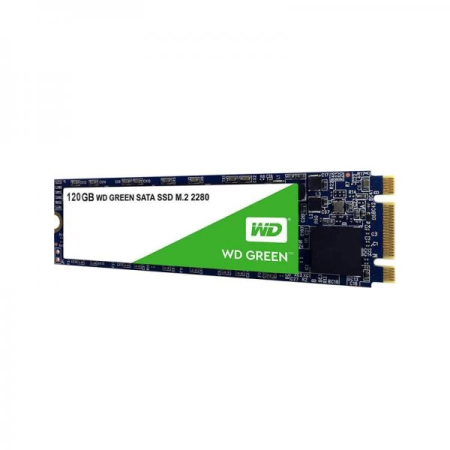

Western Digital WD Green 120gb M.2 SATA SSD
