MSI MEG Ai1300P PCIE5 1300 Watt 80 Plus Platinum SMPS
- PCIE 5 PSU
- 10-year limited warranty, guaranteeing long term reliable operation
- 100% JAPANESE 105° C CAPACITORS
- Fully modular design
- 80 PLUS PLATINUM CERTIFIED
Original price was: ₹49,999.00.₹27,899.00Current price is: ₹27,899.00.

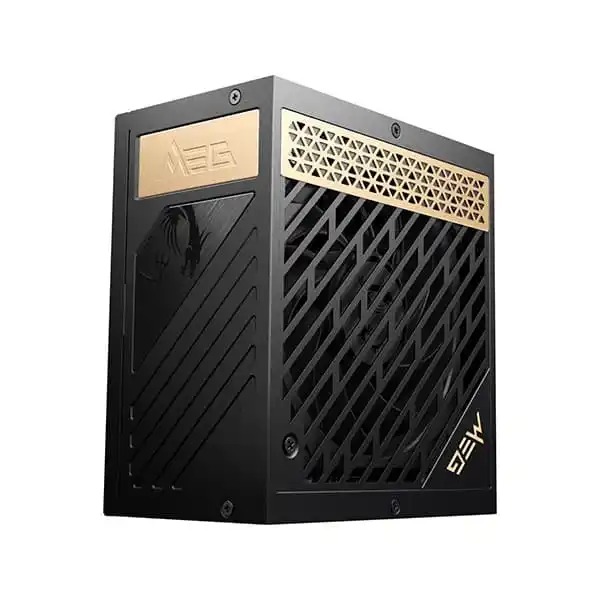

MSI MEG Ai1300P 1300 WATT PCIE5 80 PLUS PLATINUM POWER SUPPLY (MEG Ai1300P PCIE5)
Feature
OVERFLOW WITH POWER
The MSI MEG Ai1300P PCIE5 power supply is designed to be ready for high performing future graphics cards thanks to its ATX 3.0 and PCIe 5.0 readiness. Easily build up your system with its fully modular design and flexible sleeved cables. Less cable clutter means a much cleaner build. Game with no worries and have peace of mind with the MEG Ai1300P PCIE5 power supply.
ATX 3.0 READY
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Level up your GAME
With native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
GPU SUPPORT FOR ALL
The power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MEG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Compact Sizing
Compared with the general platinum power supply on the market. The power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.
Sleeve Cable
Flexible triple-layer sleeved cables are easy to bend and durable, providing easy cable routing and better durability. It also looks better depending on the preference of users.
Native PCIe 5.0 Ready
With native 16 PIN (12VHPWR) PCIe connector the MEG Ai1300P PCIE5 is ready for all high performing future graphics cards.
GAMING INTELLIGENCE
The MEG Ai1300P PCIE5 has an integrated software that features user experience optimization. Please connect the mini USB cable to sync the power supply’s information with the motherboard.
THE 80 PLUS PLATINUM CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Platinum certification promises lower energy consumption and higher efficiency.
100% JAPANESE 105° C CAPACITORS
Aiming for unwavering product quality and performance stability, the MEG Ai1300P PCIE5 power supply comes with 100% solid Japanese 105° C capacitors.
COMPACT DIMENSIONS
Compared with other 80 Plus Platinum power supplies on the market, the MEG Ai1300P PCIE5 ensures a comfortable and easy fit in most PC cases. This effectively provides more space for cable management and airflow for the rest of the system.

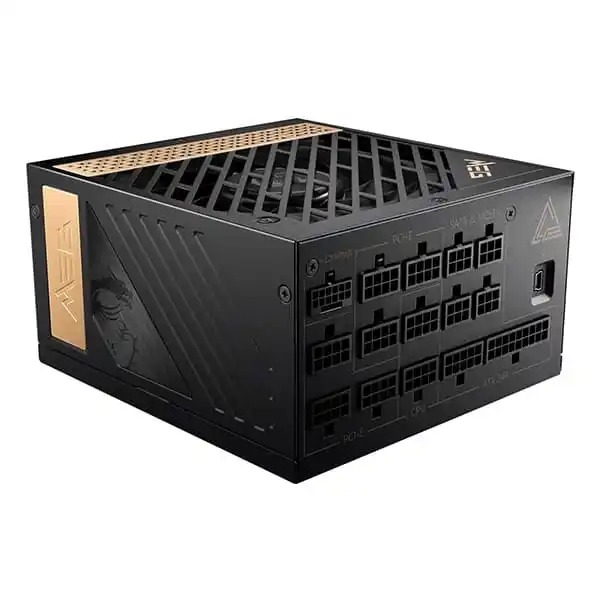

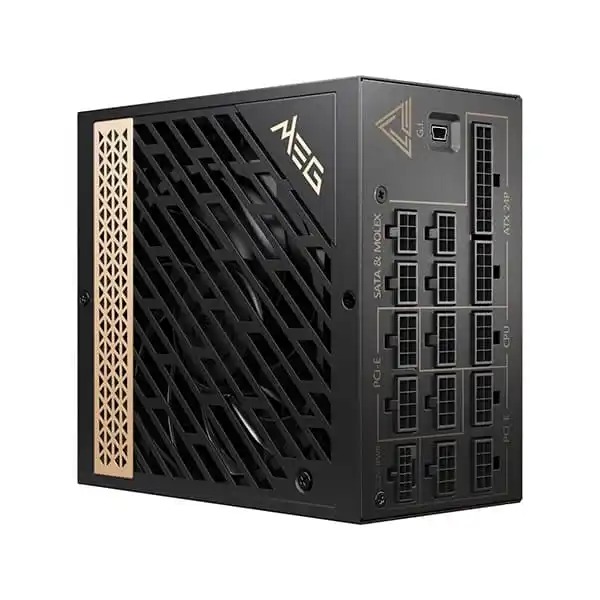

EXTENSIVE CONNECTIVITY
By offering a wide range of connectivity options, the MEG Ai1300P PCIE5 power supply offers extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs.
SPECIFICATIONS
The powerful internals of the MEG Ai1300P PCIE5 power supply translate into impressive product specifications, providing the system with plenty of power for the latest and fastest computer components.
| Efficiency Rating | 80 PLUS Platinum (up to 92%) |
| Modular | Yes (fully modular) |
| Fan Size | 120 mm |
| Fan Bearing | Hydro Dynamic Bearing |
| Dimensions (DxWxH) | 160 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240~ |
| Power Watt | 1300W |
| Power Excursion | 2600W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (8 pin) | 1 |
| EPS (4+4 pin) | 1 |
| PCI-E 5.0 (16 pin) | 1 (650W) |
| PCI-E (6+2 pin) | 8 |
| SATA (15 pin) | 16 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 2 kg |
|---|---|
| Product Type | |
| Brands | |
| color | |
| PSU Certification | |
| Wattage | |
| Modular | |
| EAN / UPC Code | |
| Warranty |
