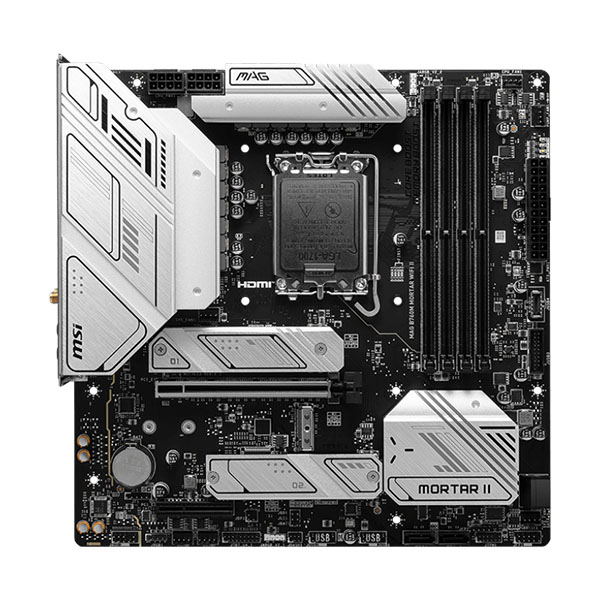

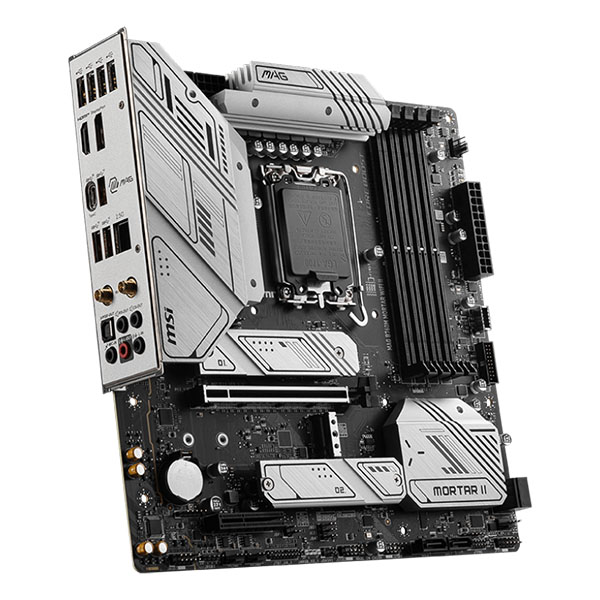

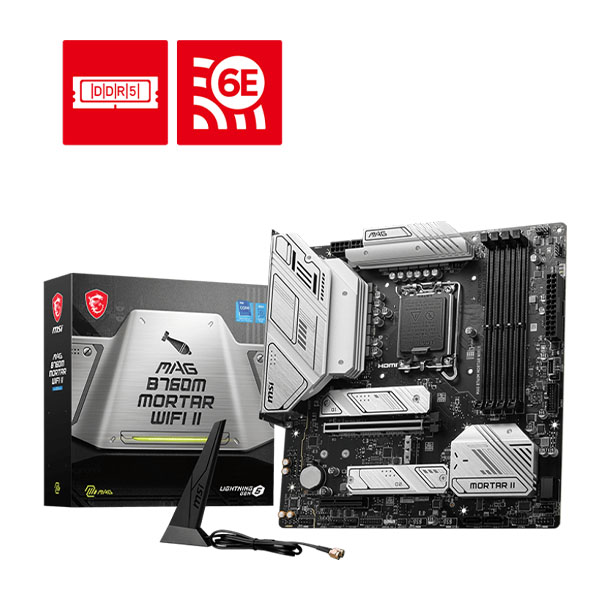

MSI MAG B760M Mortar Wifi II Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
13 sold in last 12 hours
Hurry! Over 4 people have this in their carts
Brand: MSI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Estimated Delivery: Fri, Jul 31 – Tue, Aug 04
... people are viewing this right now
Original price was: ₹33,999.00.₹17,745.00Current price is: ₹17,745.00.
Feature
MSi MAG B760M MORTAR WIFI II is designed for gamers, providing a stable, solid, and durable foundation for compact mATX PC builds. Coming up with Wi-Fi 6E, 2.5G LAN, DDR5, PCIe 5.0 solutions, and 3 M.2 connectors, it’s ready for Intel® next Gen and 13th Gen Core processors.
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
-
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
Heavy Plated VRM Heatsink
The VRM heatsink covers the upperMOS and helps dissipate the heat.
-
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
| Model | MAG B760M MORTAR WIFI II |
| Chipset | INTEL B760 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Onboard Graphics |
|
| EXPANSION SLOT | 1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
|
| LAN | Realtek® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | mATX 243.84mmx243.84mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
