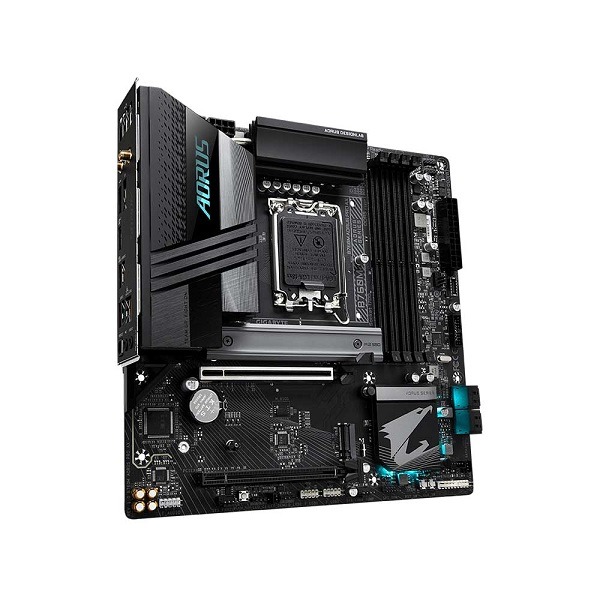

Gigabyte B760m Aorus Pro Ax Ddr5 Intel 12th And 13th Gen Support Lga 1700 Micro-atx Motherboard Supports Intel 12th, 13th & 14th Gen Processors

GIGABYTE B760M AORUS PRO AX DDR5 INTEL 12TH AND 13TH GEN SUPPORT LGA 1700 MICRO-ATX MOTHERBOARD

Feature

B760M AORUS PRO AX DDR5 802.11AX WIFI-6E

GIGABYTE B760M AORUS PRO AX INTEL 12TH AND 13TH GEN SUPPORT LGA 1700 DDR5 MICRO-ATX Motherboard has The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

B760M AORUS PRO AX DDR5 Smart Antenna

• 2X signal strength compared to traditional antenna design.
• AORUS Antenna with smart antenna function for the best WIFI signal transmitting.

GIGABYTE B760M AORUS PRO AX

• 8+4 Solid Pin CPU Power Connector
• Advanced Thermal Design
• Fully Covered MOSFET Heatsinks
• 6 mm Heatpipe
• 5 W/mk Thermal Conductivity Pad

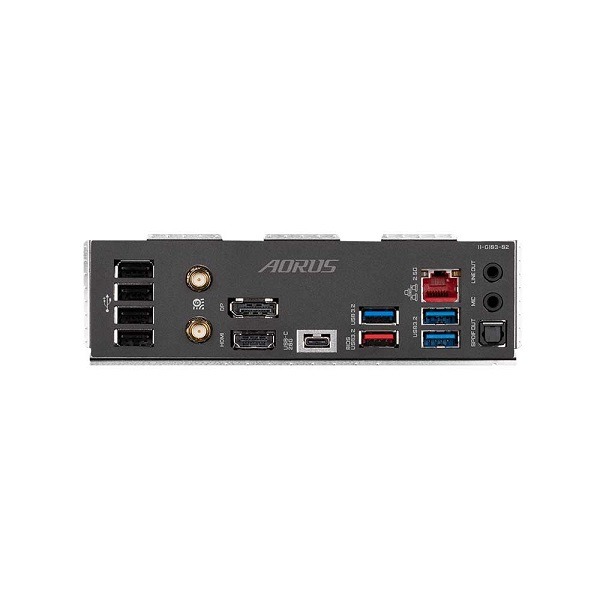

• Aluminum I/O Cover
• 1 x PCIe 4.0×16 Slot with Ultra Durable PCIe Armor
• M.2 EZ-Latch Plus
• Q-FLASH Plus Onboard Button
• 14*+1+1 Twin Hybrid Phases Digital Power Design
• 60A DrMOS
• Premium Choke and Capacitor
• 6-Layer & 2X Copper PCB
• * 7+7 phases parallel power design
• 24 Pin ATX Power Connector
• Support 13th and 12th Gen. Intel® Core™ Processors
• Dual Channel SMD DDR5 Memory
• PCIe EZ-Latch
• 2 x M.2 Ultra Storage Performance Connectors
• 2 x PCIe 4.0 x4 M.2
• 1 x Thermal Guard

Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

RGB Fusion Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

Multi-key

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

RGB Switch

Turn off all lighting effect on motherboard.

Direct-To-BIOS

Boot into BIOS menu directly without pressing any keyboard button.

Safe Mode

Boot into BIOS safe mode to change specific option without losing other BIOS settings.

Connecting the Future – Front USB3.2 Gen 2 Type-C®

GIGABYTE B760M AORUS PRO AX MOTHERBOARD HAS USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

B760M AORUS PRO AX DDR5 High-End Audio Capacitors

GIGABYTE B760M AORUS PRO AX motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

B760M AORUS PRO AX DDR5 Audio Noise Guard

GIGABYTE B760M AORUS PRO AX motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

B760M AORUS PRO AX DDR5 Connecting the Future – Front USB3.2 Gen 2 Type-C®

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

B760M AORUS PRO AX DDR5 First adopter on 2.5GbE LAN onboard

2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

DDR5 Overclocking Up to 7600 and Beyond*

GIGABYTE B760M AORUS PRO AX is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

B760M AORUS PRO AX DDR5 Dual PCIe 4.0 x4 M.2

AORUS Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
