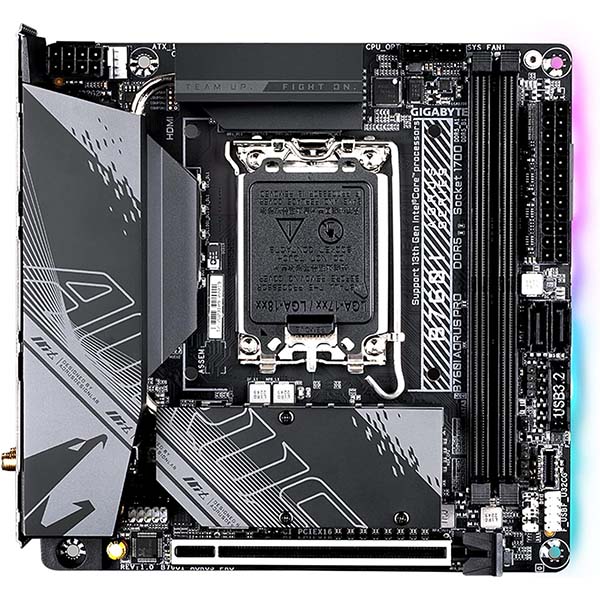

GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
18 sold in last 16 hours
Hurry! Over 10 people have this in their carts
Brand:
Gigabyte
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
Estimated Delivery: Thu, Aug 27 – Mon, Aug 31
... people are viewing this right now
Original price was: ₹40,500.00.₹23,189.00Current price is: ₹23,189.00.
GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard
Feature
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
- Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
- RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Direct Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components. Learn More about GIGABYTE Direct VRM Design.
PCIe 4.0 Design
PCIe 4.0 x16 Slot
Reinforced PCIe 4.0 x16 with lower impedance.
2 x PCIe 4.0 x4 M.2 Connectors
M.2 PCIe 4.0 x4 slot with lower impedance.
Unlock DDR5
DDR5 Overclocking Up to 8000 and Beyond*
AORUS is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
Dual PCIe 4.0 x4 M.2
PCIe 4.0 x4 M.2
AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. Upgrade with the latest 2nd generation Gen4 SSD, the performance is up to 7000MB/s which is up to 2x faster than PCIe3.0 SSD.
PerfDrive
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
OUTSTANDING THERMAL DESIGN
10-Layer PCB
3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components’ temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
-
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
-
Precision Control
Multiple temperature/fan speed control points for precise fan curve
-
Dual Curve Mode
Slope/Stair dual mode for different user scenario
-
Fan Stop
Fan can stop completely below users’ specified temperature point
Smart Fan 6 BIOS UI
Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input
For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
First adopter on 2.5GbE LAN onboard
2X Faster than ever
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
CONNECTING THE FUTURE – Rear USB3.2 Gen 2 Type-C®
Intel’s native USB 3.2 Gen 2 host controller provides USB 3.2 Gen 2 ports with speeds up to 10Gbps .With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen 1 , the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C® and the traditional USB Type-A connector for better compatibility over a wider range of devices.
USB Type-C® Front Panel Connector
Equipped with next generation connectivity AORUS Motherboards already support the chassis of the future. The onboard USB Type-C® header for USB 3.2 Gen 1 makes access convenient when connecting a USB 3.2 Gen 1 drive or charging your new mobile device.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
UEFI BIOS
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
-
RGB Switch
Turn off all lighting effect on motherboard.
-
Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
-
Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1.
Plug 24pin & 8pin power supply cable on motherboard
STEP 2.
Download motherboard BIOS file and rename to “gigabyte.bin”, save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3.
Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
| Brand | GIGABYTE |
|---|---|
| Model | B760I AORUS PRO |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * Please refer to "CPU Support List" for more information. |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Feature | 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 4.0 x16 | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
|---|
| SATA 6Gb/s | 2 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| SATA RAID | RAID 0 and RAID 1 support for SATA storage devices |
| Audio Chipset | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | BLUETOOTH 5.3 |

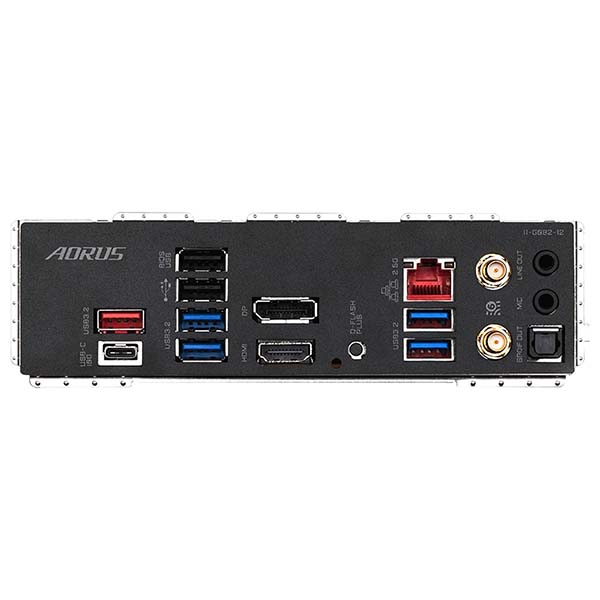

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|---|
