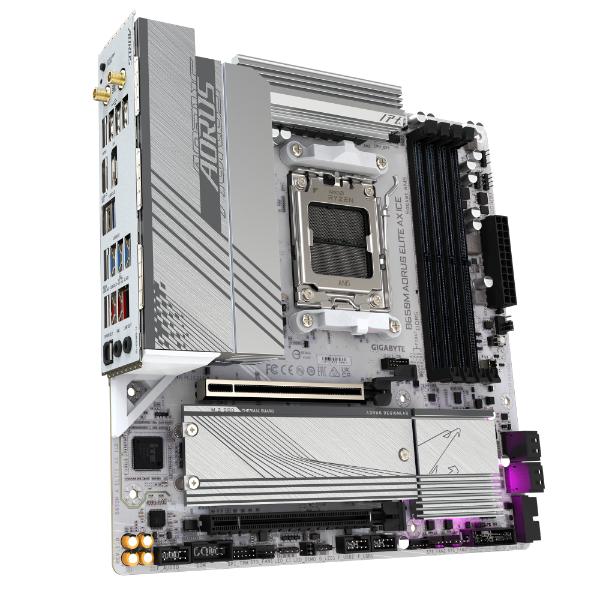

Gigabyte B650M Aorus Elite AX ICE mATX Motherboard

Name: Buy Gigabyte B650M Aorus Elite AX ICE mATX Motherboard - Computech Store
Brand: Gigabyte
SKU: B650M AORUS ELITE AX ICE
Price: 19098.00 INR
Availability: InStock

1 answered question

Brands

8 sold in last 5 hours

Hurry! Over 10 people have this in their carts

Brand:

Gigabyte

mATX Form Factor
AMD B650 Chipset
AM5 Socket
4 x Dual-Channel DDR5-8000 (OC)
4 x SATA III, 2 x M.2
2 x PCIe 4.0 x16 Slot
Realtek 7.1 Channel HD Audio
Bluetooth 5.3 and Wi-Fi 6E

Estimated Delivery: Thu, Jul 30 – Mon, Aug 03

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹36,000.00.Current price is: ₹19,098.00.

Description Specifications Additional information Reviews (0) Q & A (1)

Gigabyte AMD Ryzen B650M AORUS ELITE AX ICE AM5 DDR5 mATX Motherboard

Key Features

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E
Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

VRM Thermal Armor Advanced

High coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.

3X Large Surface

The surface area has been increased up to 3X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.

Real One-piece Build

The TRUE single-piece heatsink offers superior cooling performance compared to competitors’ multi-piece designs, thanks to its one-piece construction and larger surface area.

Multi-Cut Design

With its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.

6mm Heatpipe

6mm heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.

5 W/mK Thermal Pad

Optimize hardware performance with our advanced 5 W/mK Thermal Pad for efficient heat dissipation.

2X Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control

Multiple temperature/fan speed control points for precise fan curve.

Dual Curve Mode

Slope/Stair dual mode for different user scenario.

Fan Stop

Fan can stop completely below users’ specified temperature point.

Smart Fan 6 BIOS UI

Note: The image shown is for reference purposes and may vary depending on the specific model.

Enhance Fan Curve UI

Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode

Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input

For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning

Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

Fan Curve Profile

Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Connectivity versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Enhancing VR Experiences with Wi-Fi 6E

Wi-Fi 6E enhances VR with faster speeds, lower latency, increased capacity, and stronger security, enabling seamless wireless streaming of high-quality VR games and improved multi-user experiences.

Lower Latency

Lower latency ensures minimal delay between their actions and the corresponding response in online games, resulting in a more responsive and immersive gaming experience.

Increased Capacity

Wi-Fi 6E’s increased capacity ensures smoother gameplay by minimizing congestion and maintaining consistent performance.

Higher Speeds

Faster transmission speeds enable quick downloads, seamless online gaming, and smooth video streaming without interruptions.

Broader spectrum

Wi-Fi 6E’s use of the 6 GHz frequency band provides additional bandwidth, reducing congestion and interference from other devices.

GIGABYTE Ultra-high Gain Antenna

Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

Enhanced Intuitive UX

GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.

Quick Access Function

GIGABYTE UC BIOS’ Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.

Showcase your style

Unleash your creativity with GCC’s customizable lighting effects for your motherboard. Personalize your system with stunning visuals that reflect your individuality and style.

Note: The depicted lighting effects are for demonstration purposes only, and the actual lighting effects may vary depending on the model.

Supercharge your lighting options

Addressable RGB LED headers allow you to customize each LED individually (for ARGB GEN2 devices), and you can easily accomplish this using GCC.

*The information provided is for reference; please prioritize your specific setup and specifications.

Component	Specification
CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (Note) x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

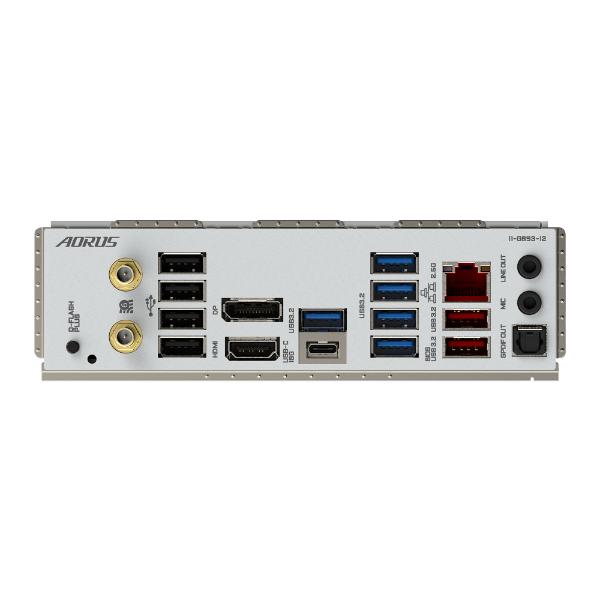

Back Panel Connectors	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.)
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Weight	1 kg
Brands	Gigabyte
Chipset	B650
color	White
Memory Series	DDR5
Motherboard Series	Gigabyte Aorus
Motherboard Size	mATX
Platform	AMD
Product Type	Normal
RAM Type	DDR5
Socket	AM5
Warranty	3 Years
EAN / UPC Code	4719331859336

Reviews

There are no reviews yet

Add a review

Currently, we are not accepting new reviews

Q & A

Ask a question

Gigabyte B650M Aorus Elite AX ICE mATX Motherboard

Your question

* Question is required

Name

* Name is required

* Email is required

Thermaltake TOUGHRAM XG RGB D5 32GB (2x16GB) DDR5 7200Mhz (white) support? VIVEK P R asked on June 6, 2024

THE GIGABYTE B650M AORUS ELITE AX ICE MICRO ATX MOTHERBOARD AND THE THERMALTAKE TOUGHRAM XG RGB D5 32GB (2X16GB) DDR5 7200MHZ (WHITE) MEMORY KIT ARE COMPATIBLE AND CAN BE USED TOGETHER TO BUILD A HIGH-PERFORMANCE GAMING SYSTEM.

Deepali Jabare answered on June 9, 2024 store manager
