Deepcool CH170 Digital mITX Cabinet
12 sold in last 6 hours
Hurry! Over 10 people have this in their carts
Brand: DeepCool
- Mini-ITX
- ABS+SPCC
- USB3.0×2, Audio×1, Gen2 TypeC×1
Estimated Delivery: Thu, Jul 30 – Mon, Aug 03
... people are viewing this right now
Original price was: ₹14,999.00.₹5,199.00Current price is: ₹5,199.00.

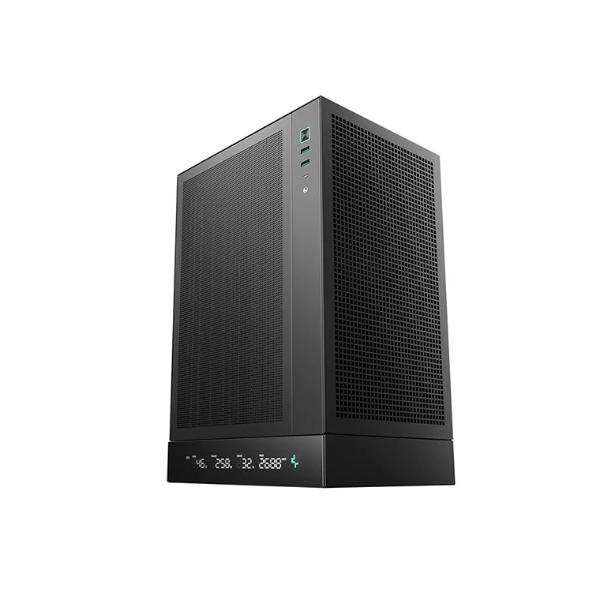

Deepcool CH170 DIGITAL Vertical M-ITX Case, With Screen, Full Mesh panel, Supports Upto Mini-ITX Motherboard, 305mm GPU, 240mm Cooler, ATX PSU, Black | R-CH170-BKNPI0D-G-1
HIGH AIRFLOW PANELS
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.
MULTIPLE DATA POINT DISPLAY
The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
OR GO LIQUID
If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm
SFX/SFX-L：305mm
ATX：230mm
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
| Product Dimensions | 380x200x250mm (L×W×H) |
| Net Weight | 3.4Kg |
| Materials | ABS + SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB 3.0 × 2, Audio × 1, Gen2 Type-C × 1 |
| 3.5" Drive Bays | 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three) |
| 2.5" Drive Bays | 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three) |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top: 1 × 120 mm Rear: 2 × 120 mm Bottom: 1 × 120 mm Side: 2 × 120 mm |
| Radiator Support | Side: 240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2 (maximum length: 140mm) / SFX / SFX-L |
| EAN | 6933412774228 |
| Part Number | R-CH170-BKNPI0D-G-1 |
| Weight | 1 kg |
|---|---|
| Brands | |
| Case Form Factor | |
| color | |
| Fan Size | |
| Motherboard Size | |
| Radiator Size | |
| EAN / UPC Code |
Add a review
Currently, we are not accepting new reviews
Q & A
Ask a question
Deepcool CH170 Digital mITX Cabinet
Your question
* Question is required
Name
* Name is required
Email
* Email is required
Does this CH170 Model can fit ATX PS2 -- 140 x 150 x 86 mm PSU
THE DEEPCOOL CH170 DIGITAL MITX CABINET SUPPORTS ATX PSUS UP TO 140MM LENGTH, SO YOUR 140 X 150 X 86MM PSU IS COMPATIBLE, BUT LONGER PSUS WILL NOT FIT.
(0)
(0)
Add an answer
Your answer
* Answer is required
Name
* Name is required
Email
* Email is required
