DeepCool CG580 Panaromic ATX PC Cabinet – Black
Original price was: ₹14,999.00.₹4,699.00Current price is: ₹4,699.00.

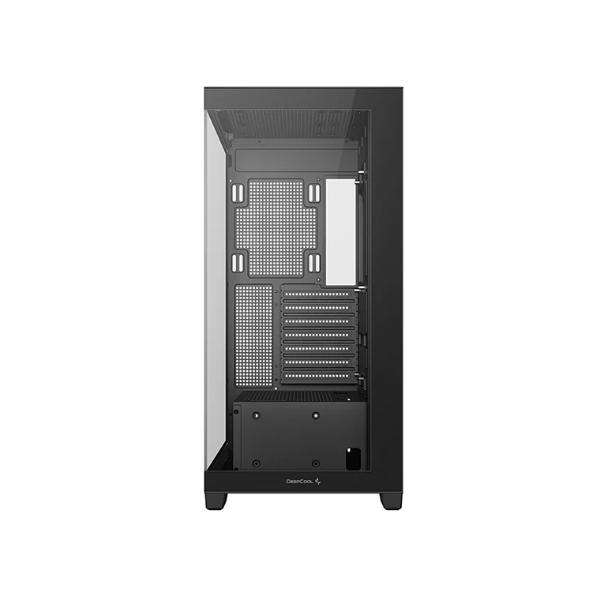

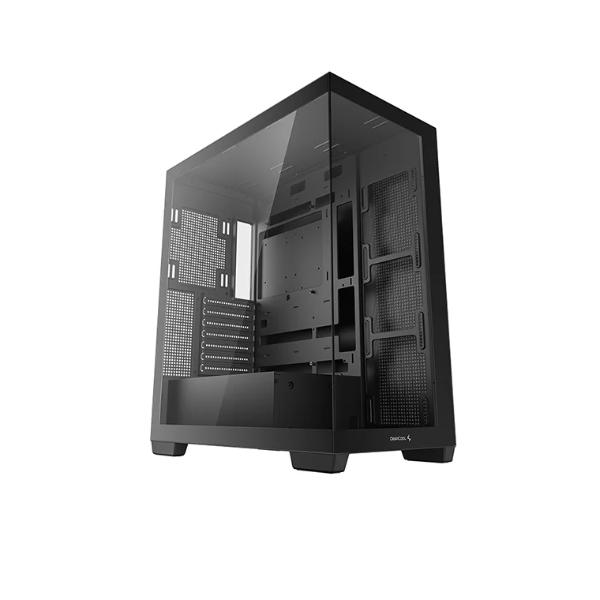

DeepCool CG580 Panaromic ATX PC Cabinet – Black
The CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN
The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORT YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5″” HDD drive.
RADIATORS:
FANS:
QUALITY OF LIFE FEATURES

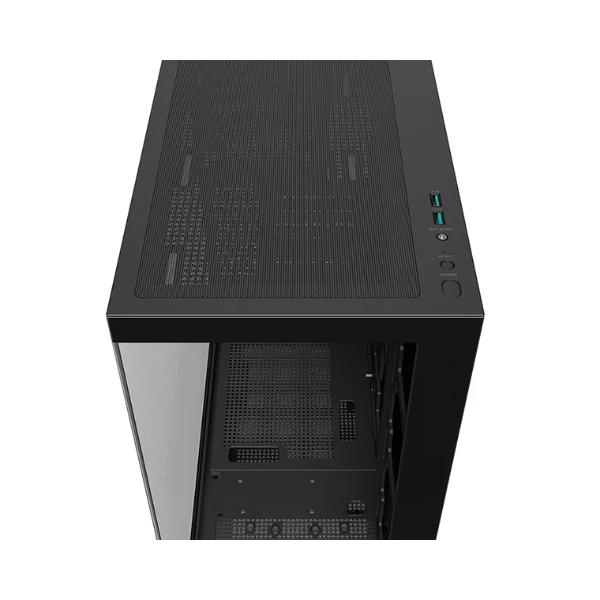

With two USB 3.0 ports and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. The magnetic top filter keeps dust out of your system and makes cleaning a little easier.
| Product Dimensions | 437×235×501mm(L×W×H) |
| Net Weight | 7.9Kg |
| Materials | ABS+SGCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2、Audio×1、Power、Reset |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: NA Top: 3×120mm/2x140mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two） PSU Shrouded: 2×120mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 176mm |
| GPU Length Limit | 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side) |
| Power Supply Type | ATX PS2（maximum length: 210mm） |
Q & A
DeepCool CG580 Panaromic ATX PC Cabinet - Black
THE DEEPCOOL CG580 4F VERSION IS EXPECTED TO BE LAUNCHED IN INDIA BY THE END OF THE YEAR OR AFTER THAT.
THE DEEPCOOL CG580 PANORAMIC ATX PC CABINET DOES SUPPORT VERTICAL GPU MOUNTING. IT INCLUDES A VERTICAL GPU BRACKET, ALLOWING YOU TO INSTALL YOUR GRAPHICS CARD IN A VERTICAL POSITION FOR BETTER VISUALS AND AIRFLOW. HOWEVER, YOU WILL NEED TO ENSURE THAT YOUR GPU IS COMPATIBLE WITH THE CABINET'S DIMENSIONS AND THAT YOU HAVE THE APPROPRIATE CABLES FOR CONNECTION. OVERALL, VERTICAL MOUNTING CAN ENHANCE THE AESTHETICS OF YOUR BUILD.
