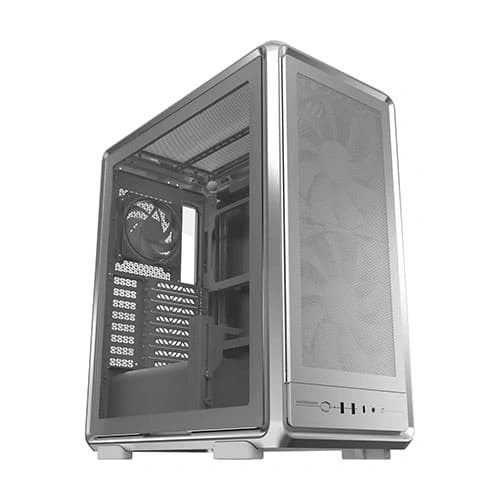

Cooler Master MasterFrame 500 Mesh ARGB Silver E-ATX Mid Tower Case
Original price was: ₹30,000.00.₹14,820.00Current price is: ₹14,820.00.
Cooler Master MasterFrame 500 Mesh ARGB Silver E-ATX Mid Tower Case
Feature
- FreeForm 2.0 Aluminum Exo-structure: Open-frame design enables flexible configurations and supports various installation scenarios.
- Flexible Motherboard Support: Compatible with Mini-ITX to E-ATX (up to 305 x 330mm) to accommodate a wide range of system builds.
- Customization-Ready Design: Interchangeable panels and open-frame layout offer flexibility for personalized builds and modding.

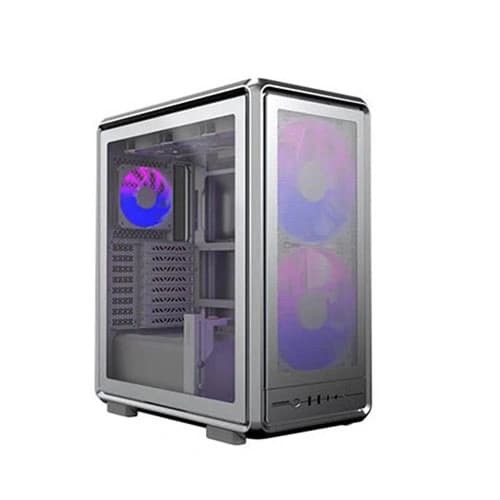

- Pre-installed Dual 200mm aRGB Fans: Equipped with two front 200mm intake fans pre-installed for powerful airflow and effective out-of-box cooling.
- Extensive Cooling Support: Accommodates up to 7 fans and 360mm radiators to deliver strong and reliable thermal performance.
The Cooler Master MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.
We’re all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function and, of course, the thrill of bringing your creation to life without melting your components.
MasterFrame 500 Mesh ARGB Silver
Not a Case. A Launchpad.
The MasterFrame Series is our flagship showcase of Cooler Master’s FreeForm 2.0 design platform. This cases feature precision-milled aluminum exo-structures let you choose between open-bench, wall-mount, or showcase build modes—no special tools required. Download the open-source CAD files, print your own parts, swap in artisan side panels, and push performance with extreme cooling headroom. Your build, your rules.
- FreeForm 2.0 Aluminum Exo-structure
- Versatile & Maker-Driven
- Flexible Motherboard Support
- Pre-installed Dual 200mm ARGB Fans
- Extensive Cooling Support
- Ample GPU Clearance
- Tool-Free Panel Removal
- Included GPU Support Bracket
FreeForm 2.0 Features
Exo-Structure
Exposed aluminum frame boosts rigidity and lets you mount hardware exactly where you want it.
Versatile & Maker-Driven
Open-source design files and swappable panels make personalization straightforward—print, paint, or swap parts to match your style.
Flexible Motherboard Support
Compatible with Mini-ITX to E-ATX (up to 305 x 330mm) to accommodate a wide range of system builds.
Extensive Cooling Support
Accommodates up to 7 fans and 360mm radiators to deliver strong and reliable thermal performance.
FreeForm 2.0 Features
Ample GPU Support
Accommodates today’s flagship GPUs.
Tool-Free Panel Removal
Quick-release hinges and thumbscrews make quick work of upgrades and cable tweaks.
Included GPU Support Bracket
Prevents sag and protects your card during intense gaming or rendering sessions.
Swappable Panel
Ebony, Eucalyptus, Grey Oak, Stone Veneer & Walnut.
*Availability may differ based on region
| Cabinet Size | MID-TOWER |
| Color | Silver |
| Material | Steel, Aluminum,Tempered Glass |
| Expansion Slots | 8 |
| Motherboard Size | SSI CEB,E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 190mm |
| Max PSU Length | 235mm |
| Max Gpu Length | 390mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Pre Installed Fans | 3 |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.2 Gen 1 Type A,USB 3.2 Gen 2x2 Type C,3.5mm Headset Jack |
| Warranty | 2 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
| Product Type | |
|---|---|
| color | |
| Brands | |
| Motherboard Size | |
| Case Form Factor | |
| Radiator Size | |
| Max Fan Support | |
| Warranty | |
| EAN / UPC Code |
