ASUS ROG Strix X870E-E GAMING WiFi Motherboard

ASUS ROG Strix X870E-E GAMING WiFi Motherboard

Name: Buy ASUS ROG Strix X870E-E GAMING WiFi Motherboard - Computech Store
Brand: Asus
SKU: ROG-STRIX-X870E-E-GAMING-WIFI
Price: 52499.00 INR
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

1 review

Brands

6 sold in last 13 hours

Hurry! Over 3 people have this in their carts

Brand:

Asus

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance.
ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement.

Estimated Delivery: Thu, Jul 30 – Mon, Aug 03

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹84,000.00.Current price is: ₹52,499.00.

Description Specifications Additional information Reviews (1) Q & A

ASUS ROG Strix X870E-E Gaming WiFi AMD AM5 X870 ATX Motherboard 18+2+2 Power Stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 5X M.2, PCIe® 5.0, Q-Release Slim, USB4®, AI OCing & Networking

Feature

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors.
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance.
ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement.
Robust Power Solution: 18+2+2 power solution rated for 110A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors.
Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heat-pipe.
Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots, and two PCIe 4.0 M.2 slots, all with substantial cooling solutions.
Abundant Connectivity: Dual USB4 Type-C ports, USB 20Gbps Type-C front-panel connector, one USB 10Gbps port with PD 3.0 up to 30W and USB Wattage Watcher, nine additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5 Gb Ethernet.
DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield.

The ASUS ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe^® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4^® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

Performance OVERCLOCKING

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Asynchronous Clock

For next-level frequency flexibility, the ROG Strix X870E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
Separate CPU BCLK from other domains for unfettered overclocking
PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

PerformanceMEMORY

DDR5 DOMINATION

The Strix X870E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
NitroPath DRAM Technology

Frequency up to 400 MT/s higher

Enhance the slot retention orce by 57%
AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

COOLING

M.2

M.2 HEATSINKS, M.2 COMBO-SINK, M.2 BACKPLATE
VRM

VRM HEATSINK ARRAY
CPU

CPU FAN HEADERS, AIO PUMP FAN HEADER
CHASSIS

4-PIN FAN HEADERS

BIOS

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup .

UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix X870E-E bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.

CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
	* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset	AMD X870E

Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to
	8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
	8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
	8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
	ECC and Non-ECC Un-buffered DIMM*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO™)
	NitroPath DRAM Technology
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics	1 x HDMI™ port**
	2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports max. 4K@60Hz as specified in HDMI 2.1.
	*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
	**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)
	AMD Ryzen™ 8000 Series Desktop Processors*
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
	AMD X870E Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
	** Specifications vary by CPU types.
	To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
	AMD Ryzen™ 8000 Series Desktop Processors*
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)***
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)***
	AMD X870E Chipset
	M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU.
	** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
	*** M.2_2 & M.2_3 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.

Ethernet	1 x Realtek 5Gb Ethernet
	ASUS LANGuard

Wireless & Bluetooth	Wi-Fi 7*
	2×2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”

USB	Rear USB (Total 13 ports)
	2 x USB4® (40Gbps) ports(2 x USB Type-C®)
	1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)**
	10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
	Front USB (Total 11 ports)
	1 x USB 20Gbps connector (supports USB Type-C®)
	2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
	3 x USB 2.0 headers support additional 6 USB 2.0 ports
	* USB Type-C® power delivery output: 5V/3A
	** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
	Impedance sense for front and rear headphone outputs
	Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	Supports up to 32-Bit/384 kHz playback
	Audio Features
	Audio Shielding
	Savitech SV3H712 AMP
	Gold-plated audio jacks
	Rear optical S/PDIF out port
	Premium audio capacitors
	Audio cover
	* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports	2 x USB4® (40Gbps) ports (2 x USB Type-C®)
	1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge)
	10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
	1 x HDMI™ port
	1 x Wi-Fi Module
	1 x Realtek 5Gb Ethernet
	2 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button

Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage related
	5 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C®)
	2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
	3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous	3 x Addressable Gen 2 headers
	1 x CPU Over Voltage jumper
	1 x FlexKey button
	1 x Front Panel Audio header (F_AUDIO)
	1 x Start button
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header

Special Features	Extreme Engine Digi+
	5K Black Metallic Capacitors
	ASUS Q-Design
	M.2 Q-Latch
	M.2 Q-Release
	M.2 Q-Slide
	PCIe Slot Q-Release Slim (with PCIe SafeSlot)
	Q-Antenna
	Q-Code
	Q-Dashboard
	Q-DIMM
	Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	Q-Slot
	ASUS Thermal Solution
	M.2 heatsinks
	M.2 heatsink backplate
	VRM heatsink design
	ASUS EZ DIY
	BIOS FlashBack™ button
	BIOS FlashBack™ LED
	Clear CMOS button
	ProCool II
	Pre-mounted I/O shield
	SafeSlot
	SafeDIMM
	Aura Sync
	Addressable Gen 2 headers

Software Features	ROG Exclusive Software
	ROG CPU-Z
	Dolby Atmos
	ASUS Exclusive Software
	Armoury Crate
	AIDA64 Extreme (60 days free trial)
	Aura Creator
	Aura Sync
	Fan Xpert 4 (with AI Cooling II)
	GameFirst
	HWiNFO
	Power Saving
	ASUS Driver Hub
	ASUS GlideX
	TurboV Core
	USB Wattage Watcher
	Adobe Creative Cloud (Free Trial)
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI
	BIOS EZ Mode
	ASUS
	MyHotkey
	Dynamic OC Switcher
	FlexKey

BIOS	256 Mb Flash ROM, UEFI AMI BIOS

Manageability	WOL by PME, PXE

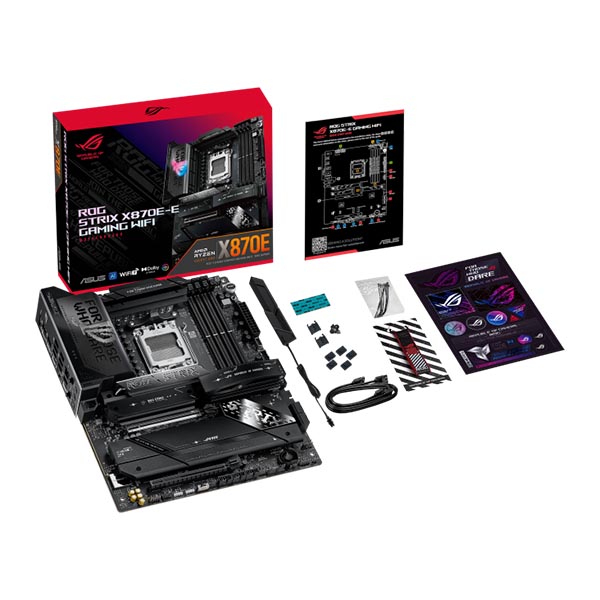

Accessories	Cables
	2 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2 22110
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Q-Latch package
	2 x M.2 Q-Slides
	1 x ROG key chain
	1 x ROG Strix stickers
	5 x M.2 Rubbers
	Documentation
	1 x Quick start guide

Operating System	Windows® 11 64-bit

Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Weight	2 kg
Product Type	Normal
color	Black
Brands	Asus
Socket	AM5
Chipset	X870
Memory Series	DDR5
Platform	AMD
Motherboard Size	ATX
Warranty	3 Years
EAN / UPC Code	4711081941234
